  • 8-speed Shimano-Nexus
  • comfortable riding position
  • 15 kg payload capacity on front rack
  • front rack surface area: 35 cm x 26 cm x 20 cm (W x D x H)
  • child seat mounting possible
  • 8-speed Shimano-Nexus
  • comfortable riding position
  • 15 kg payload capacity on front rack
  • front rack surface area: 35 cm x 26 cm x 20 cm (W x D x H)
  • child seat mounting possible
Schindelhauer

Gustav

€1,750.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Obviously, we want you to be happy with every product you purchase from us, whether online or in-store. Please do not remove labels from products or dispose of packaging while you are making up your mind as this may affect your ability to return an item. If you choose to return an item it must reach us in original unused condition with all labels attached and any packaging that may have formed part of the item i.e. boxed goods. At all times your statutory rights are protected.

MAKING A RETURN

In the event that you are not satisfied or have changed your mind, you may return any item or items within 14 days of the dispatch date and, following inspection of the product, we will refund you for the cost of the item minus the outgoing delivery charge (minimum charge €4.50) via the original payment method used. Please note that the cost of the return is not the responsibility of Freewheeling. We reserve the right not to accept ‘change of mind returns outside of this period. Goods may also be returned in person to our store.

Returns should be posted to Online Returns, Freewheeling Ireland, 96 Pearse Street, Grand Canal Dock, Dublin 2

CANCELLATION POLICY

You can cancel or amend any order (or part of an order) placed with us, provided that the order has not yet entered the dispatch process. You will receive a full refund, including postage, via the original method of payment.

If your order, or part of it, has entered the dispatch process, you can refuse to accept the delivery of the item. It will be returned to us as undeliverable where we will refund the amount for the item however, you will still incur costs for the outward postage.

Gustav

Season:2022

Brand:Schindelhauer

Code:SC.GU

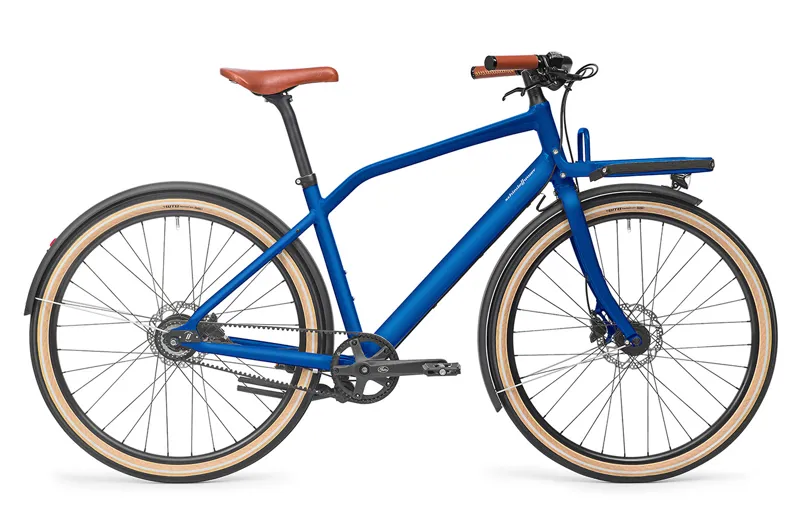

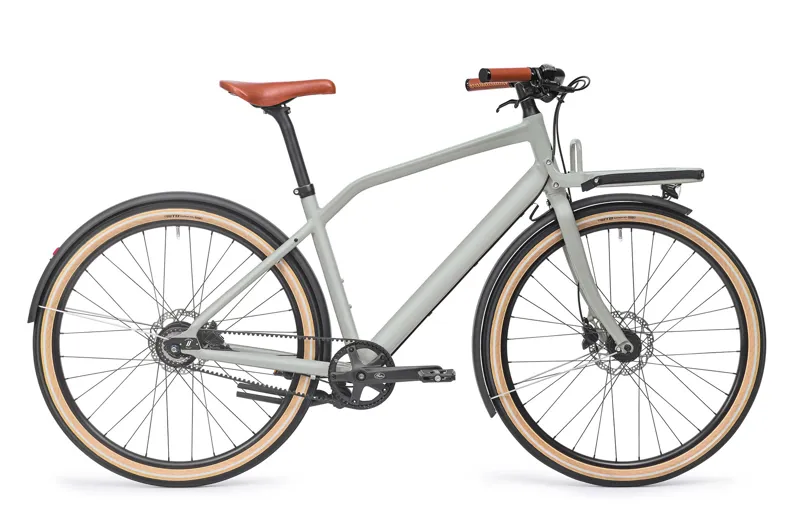

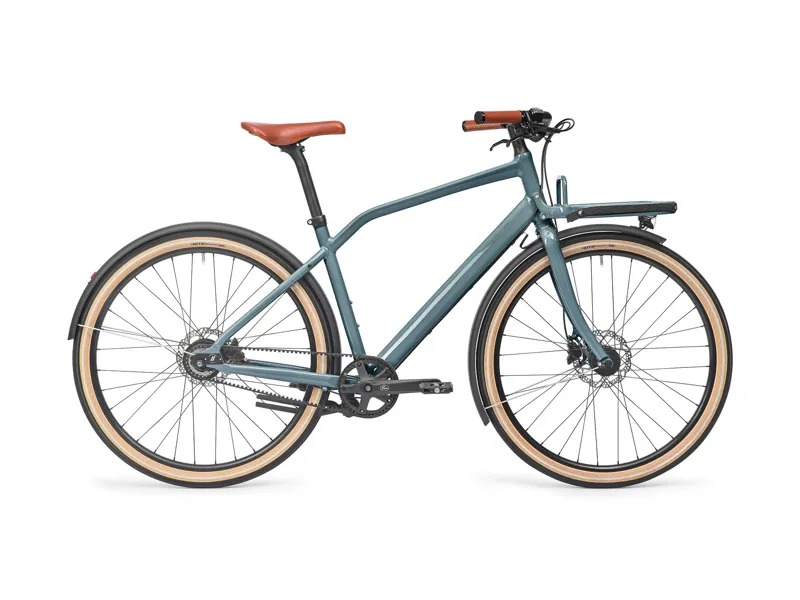

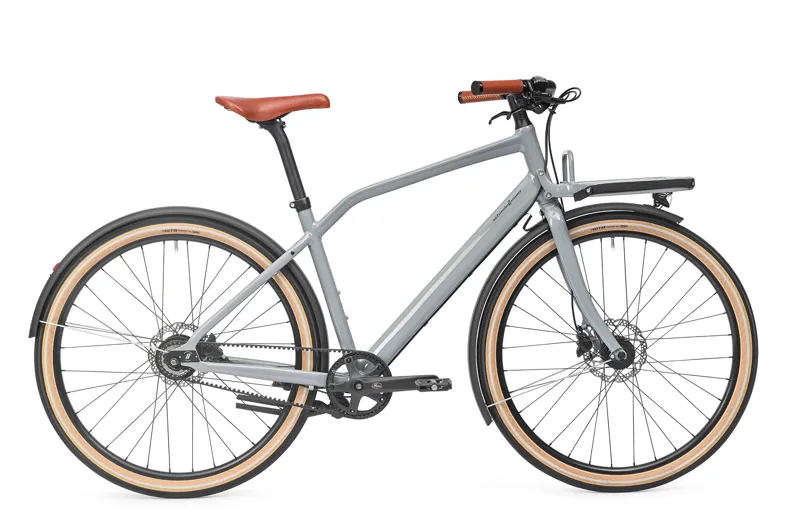

Gustav - The Allrounder

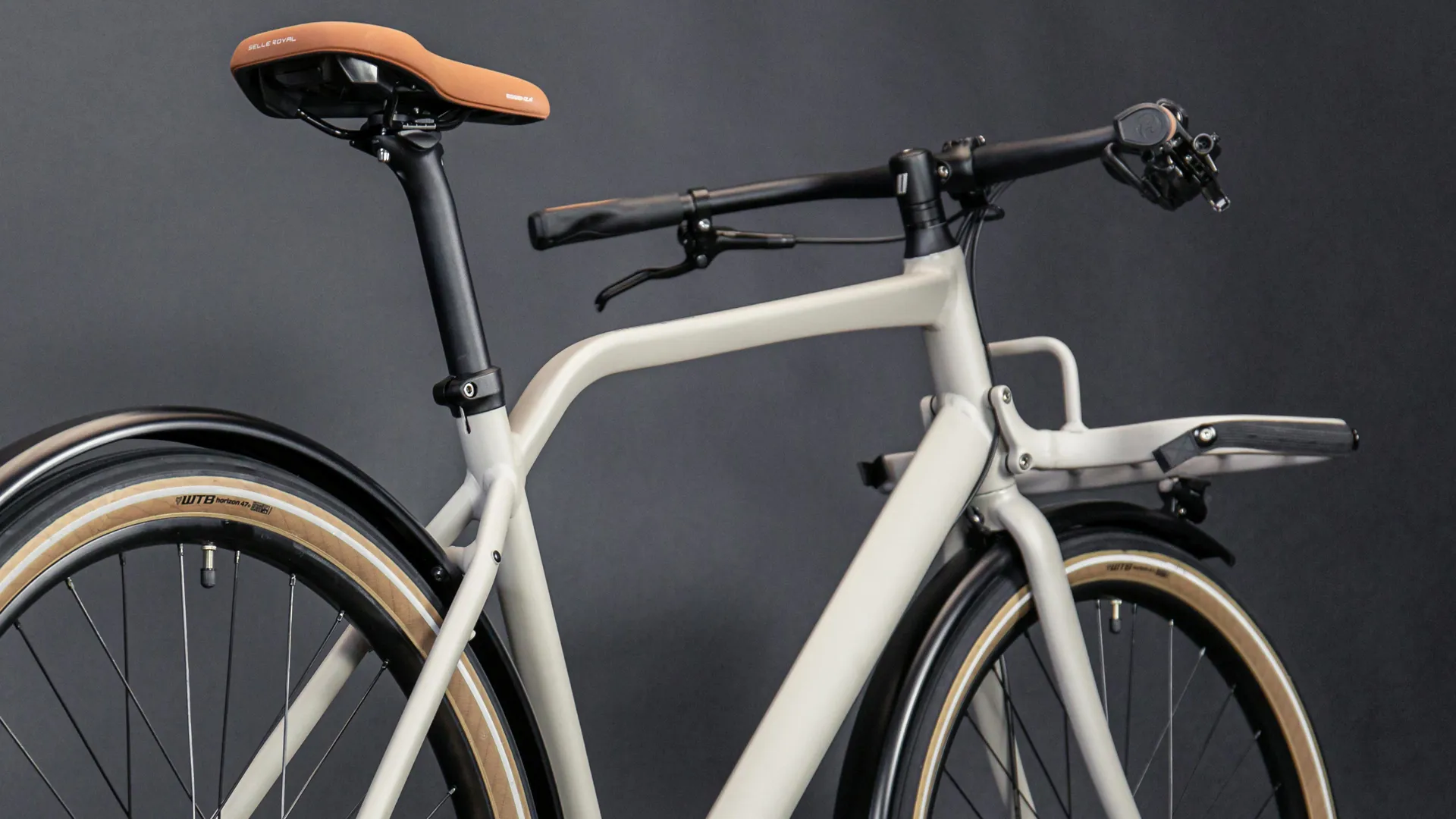

With a practical, functional but reduced design, Gustav is an urban all-rounder built to make the lives of everyday commuters easier. A key design highlight is the built-in front rack with its clever strap system. The rack is attached to the head tube and won’t upset the balance as you steer around corners. We’ve also designed an extremely adaptable strap system for the rack, so you can be sure that anything from picnic baskets to parcels remain securely fastened. Even with heavier objects on board, Gustav glides effortlessly through the city streets and you can enjoy a smooth ride.


The new frame geometry we’ve developed for Gustav uses a longer head tube and shorter stem for a more comfortable cycling position. It is possible to attach a child seat onto the seat tube, as well as a Thule trailer onto the rear axle. Wider tyres also make for a comfier ride and mean cobblestones or uneven surfaces are no longer something you need to avoid.
Gustav is equipped with a maintenance-free 8-speed Shimano Nexus internal hub. A dynamo lighting system neatly built into the Curana fenders completes this Schindelhauer-Allrounder.


Technical Information

FEATURE LIST

frame

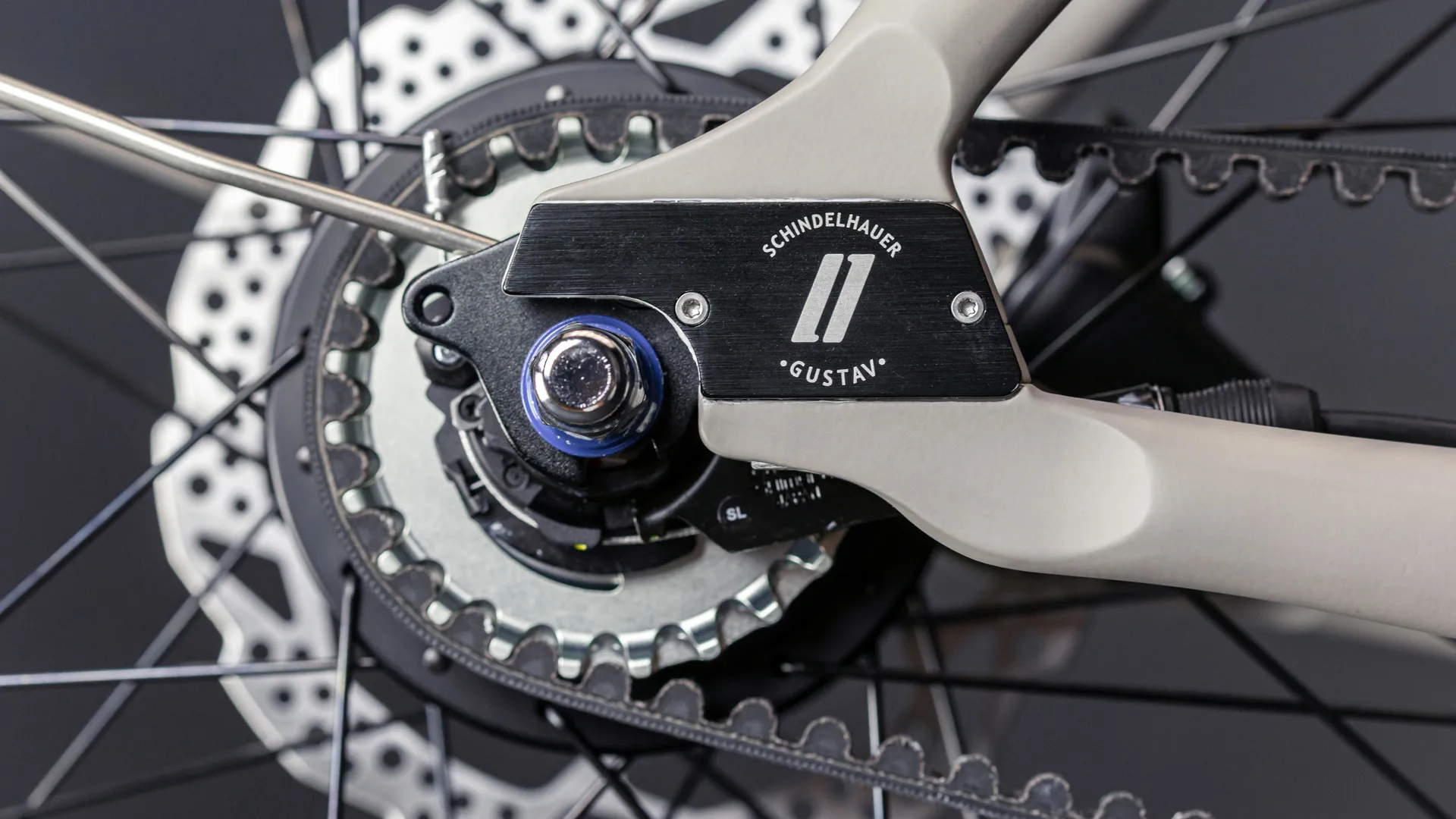

Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, points for frame mounted front rack, smooth welded

fork

curved aluminium fork for disc brake mount

headset

Tange Seiki - integrated, 1 1/8

power transmission

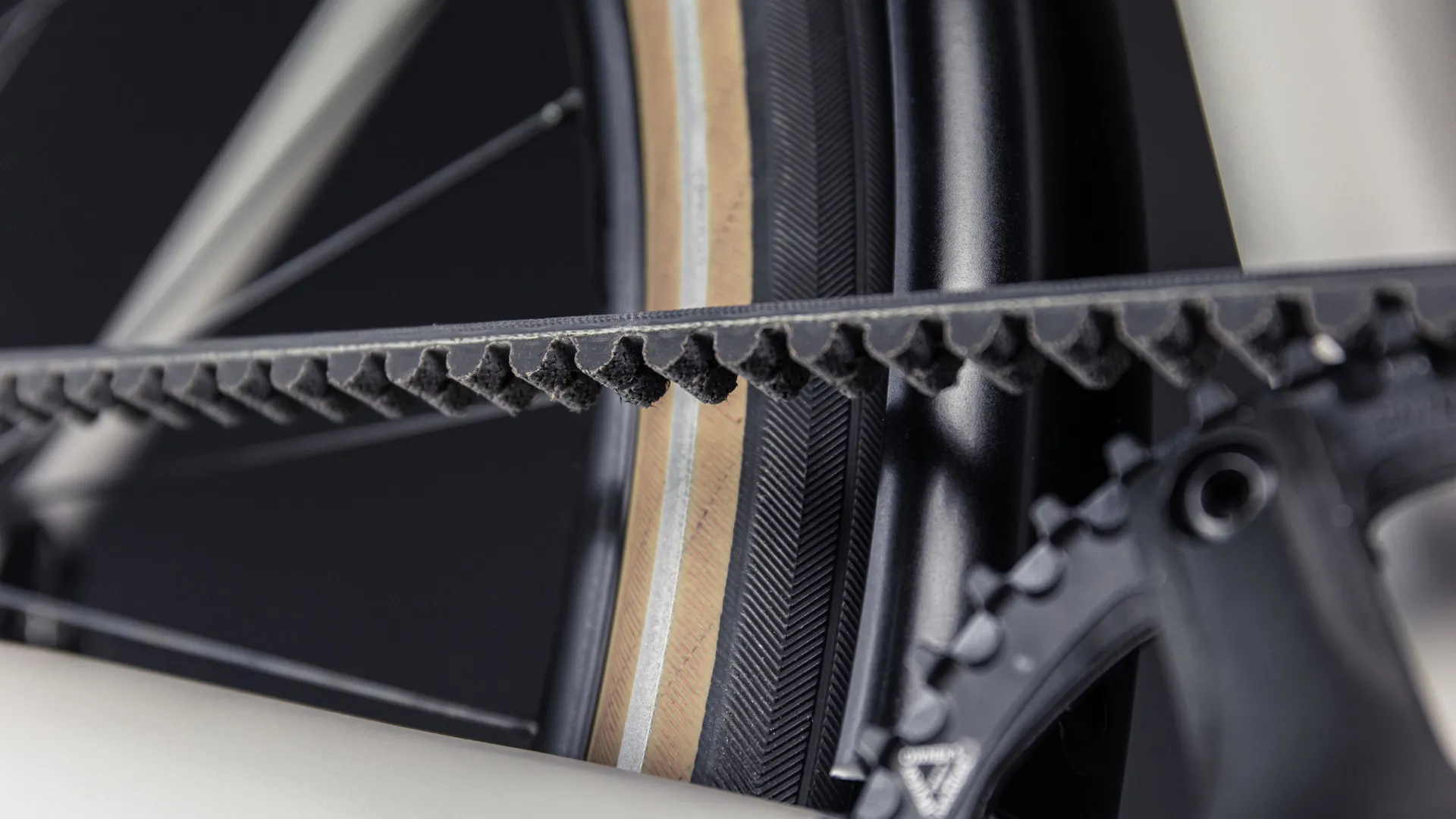

Gates Carbon Drive - CDN, front 46T, rear 24T, belt 115T

gear shiftShimano - Nexus 8-speed
crank set

Gates Carbon Drive - S150

bottom bracket

THUN - Zumba

pedals

VP - Nylon, with grip tape

stem

Schindelhauer

handlebar

Schindelhauer - Jane, Aluminium

saddleSchindelhauer
seat postSchindelhauer
gripsSchindelhauer
wheelsShimano - DH-T4050 hub dynamo, Shimano Nexus 8-speed, Alexrims - DP23 27,5“ rims, SAPIM spokes, 3-cross and 2-cross laced
brakes

Shimano – MT200 disc brakes (hydraulic) 160 mm

tyresWTB - Horizon 47 - 584, with reflex stripes
weight13.0 kg
max. total weight130 kg (bike + rider + luggage)
mudguards

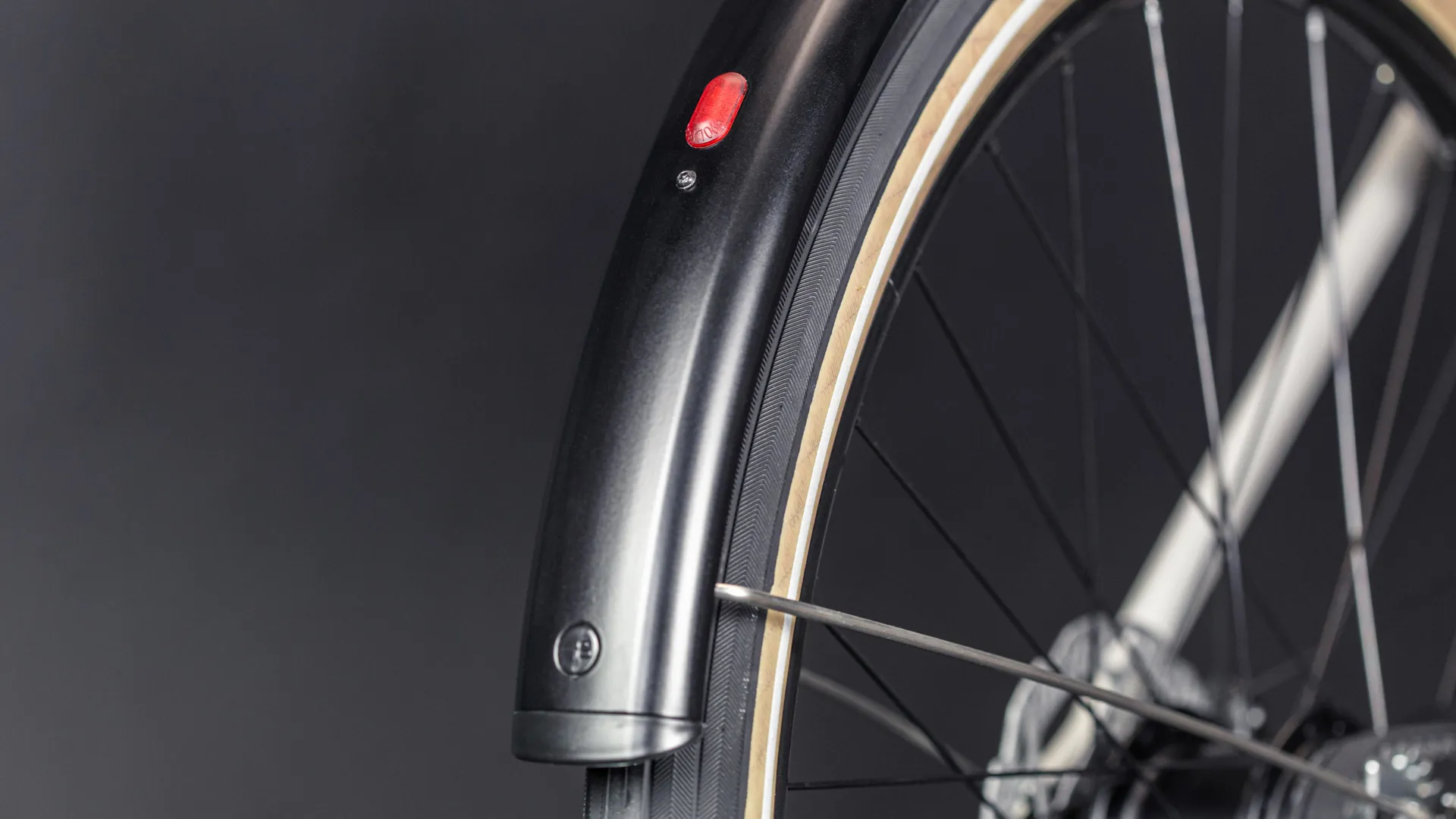

Curana – Apollo (extrusion profile mudguards)

pannier rack

Schindelhauer -aluminium, frame mounted, with VarioStraps

lighting

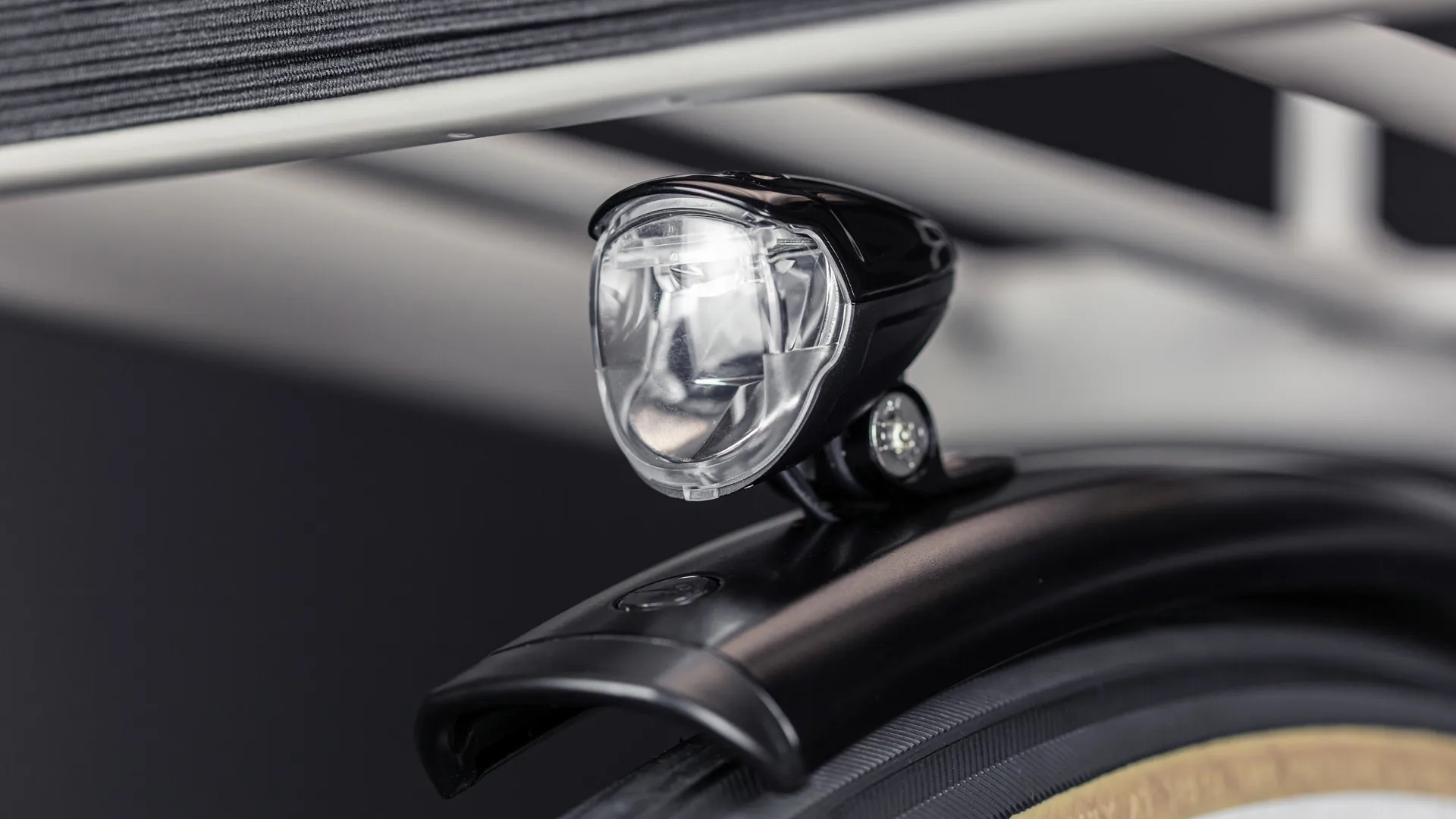

Busch und Müller Lumotec Eyc N Plus front and ILU jr. rear

additional features

Pletscher Twin stand

Mounting of bottle cage or lock onto the frame is possible

Attaching a child seat onto the seat tube is possible

Installing a bicycle trailer onto the rear axle is possible but will require a hub hitch adapter. Please consult the trailer manufacturer or dealer for further information

We reserve the right to make minor changes to features without prior notice.

Sizing Information

GEOMETRY

which frame size is right?

The frame sizes listed are only a guide. Finding the right sized frame for you depends on things like your height, personal preferences and riding style. We always recommend taking a test ride atone of our dealers.

size recommendation

frame sizeS
45
M
50
L
55
body height168-177177-186186-200
inseam length77-8283-8889-96

frame size45
S
50
M
55
L
A size c-t (mm)450500550
B top tube horiz. (mm)590630644
C head tube (mm)190200230
D chain stay (m)438438438
E head tube angle (°)72.572.572.5
F seat tube angle (°)737373
G wheelbase (mm)106311041118
H standover height (mm)808836873
I Reach409447453
J Stack615624653
headset1 1/81 1/81 1/8
seatpost size (mm)30.930.930.9
Geometrie
