  • MAHLE ebikemotion 250-Watt motor
  • electric support up to 25 km/h
  • integrated 250Wh-battery
  • 6- or 9-speed Pinion C-Line drive
  • LightSKIN Ultra-Mini-Light U2E (German StVZO-compliant)
  • motor and lighting control at the touch of a button on the frame or via app
  • Gates Carbon Drive CDX belt
  • built-in front rack
  • MAHLE ebikemotion 250-Watt motor
  • electric support up to 25 km/h
  • integrated 250Wh-battery
  • 6- or 9-speed Pinion C-Line drive
  • LightSKIN Ultra-Mini-Light U2E (German StVZO-compliant)
  • motor and lighting control at the touch of a button on the frame or via app
  • Gates Carbon Drive CDX belt
  • built-in front rack
Schindelhauer

Emilia VI Speed

€4,395.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Obviously, we want you to be happy with every product you purchase from us, whether online or in-store. Please do not remove labels from products or dispose of packaging while you are making up your mind as this may affect your ability to return an item. If you choose to return an item it must reach us in original unused condition with all labels attached and any packaging that may have formed part of the item i.e. boxed goods. At all times your statutory rights are protected.

MAKING A RETURN

In the event that you are not satisfied or have changed your mind, you may return any item or items within 14 days of the dispatch date and, following inspection of the product, we will refund you for the cost of the item minus the outgoing delivery charge (minimum charge €4.50) via the original payment method used. Please note that the cost of the return is not the responsibility of Freewheeling. We reserve the right not to accept ‘change of mind returns outside of this period. Goods may also be returned in person to our store.

Returns should be posted to Online Returns, Freewheeling Ireland, 96 Pearse Street, Grand Canal Dock, Dublin 2

CANCELLATION POLICY

You can cancel or amend any order (or part of an order) placed with us, provided that the order has not yet entered the dispatch process. You will receive a full refund, including postage, via the original method of payment.

If your order, or part of it, has entered the dispatch process, you can refuse to accept the delivery of the item. It will be returned to us as undeliverable where we will refund the amount for the item however, you will still incur costs for the outward postage.

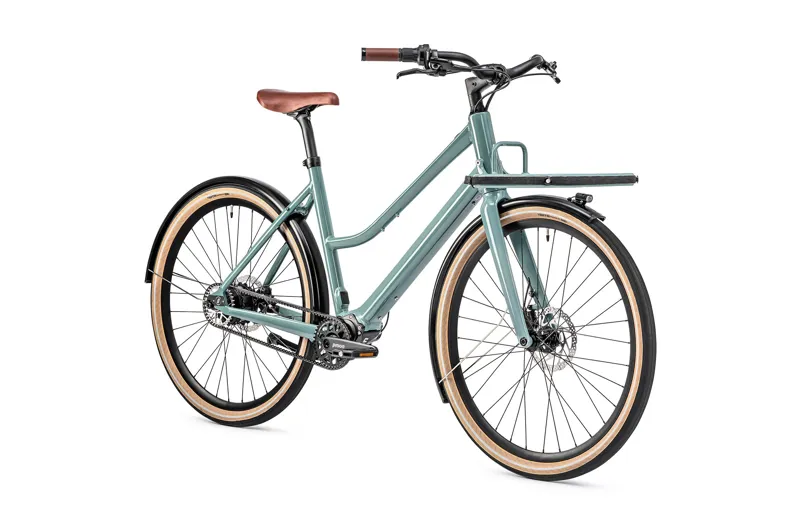

Emilia VI Speed

Season:2022

Brand:Schindelhauer

Code:EM.21

Emilia VI/IX


The electrified all-rounder

Comfortable, functional and powerful in its reduced design language - Emilia, as Emil's better half, is a fully equipped e-bike with all the advantages of an all-rounder and comes with a step-through frame. The inconspicuous 250-watt motor integrated in the rear hub and the 250Wh battery placed in the down tube offer enduring riding fun thanks to reliable components from Mahle. Control and individual riding profiles are easily accessible at the touch of a button on the frame or via app.

Fully loaded

Emilia's urge to move can be optimally transferred to the road by means of the Pinion sequential gearbox with a choice of 6 or 9 gears. Developed by former Porsche engineers, even precise gear changes are possible, whether stationary or on the move. Another highlight is the frame-mounted front rack with clever tensioning strap system. Even larger loads can be transported safely and without affecting the handling. The LightSKIN Ultra-Mini-Light U2E, the world's smallest StVZO bicycle front light, integrated on the aluminium profile mudguard ensures the best visibility at night.

Relaxed in everyday life

Thanks to the adapted Schindelhauer frame geometry with longer head tube and shorter stem, Emil has a comfortable riding position. Cobblestone roads and rough park paths become a new favourite shortcut thanks to the large-volume tyres. With the Gates Carbon Drive toothed belt, three to four times the mileage is possible than with a chain - with the same efficiency, but less maintenance and noise. Oiling and greasing are as much a thing of the past as dirty trouser legs.

Technical Information

FEATURE LIST

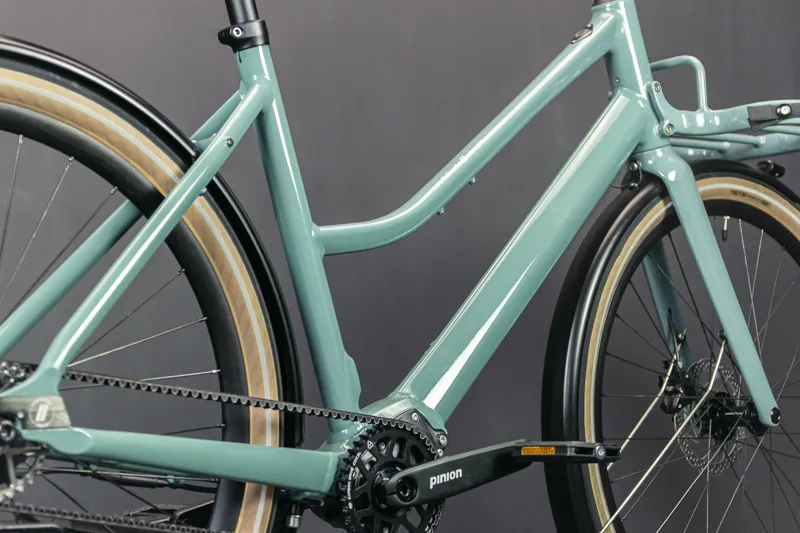

frameAluminium (AL6061-T6), triple butted aero tubing, forged PINION bracket, forged dropouts with slider belt tensioning system and Schindelhauer – belt port, points for frame mounted front rack, smooth welded, internal cable routing
forkHydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
headsetAcros - ICR 1,5''

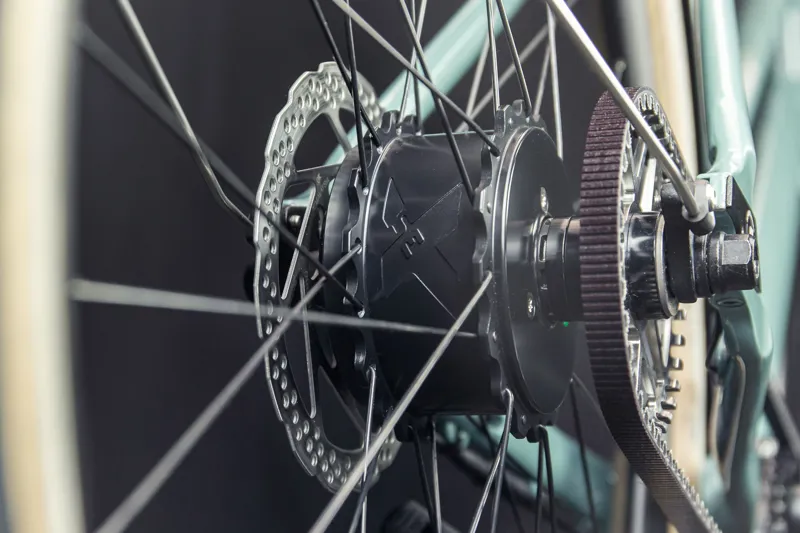

motorMahle-ebikemotion – Motor HUB Drive M1, power: 250 W, torque: 40 Nm, max. support up to 25 km/h
batteryMahle-ebikemotion – intube battery, energy: 250 Wh
displayMahle-ebikemotion – iWoc ONE with Bluetooth and ANT+
power transmissionGates Carbon Drive CDX, front 39T, rear 34T/28T, belt 118T/115T
gear shifttPinion C-Line gear box 6-/9-speed (XR)
bottom brackettPinion
crank setPinion
pedalsVP – Nylon, with grip tape
stemSatori – Stealth, aluminium
handlebar

Schindelhauer - CITY, aluminium

saddleSchindelhauer
seatpostSchindelhauer
gripsSchindelhauer
wheelsSchindelhauer – high flange front hub disc, ebikemotion motor HUB Drive M1, Alexrims – DP23 27,5“ rims, Sapim – spokes, 3-cross and 1-cross laced
brakesShimano – MT200 disc brakes (hydraulic) 160 mm
tyresWTB – Horizon 47-584, with reflex stripes
weight17.6 kg (6-speed)/17.9 kg (9-speed)
max. total weight130 kg (bike + rider + luggage)

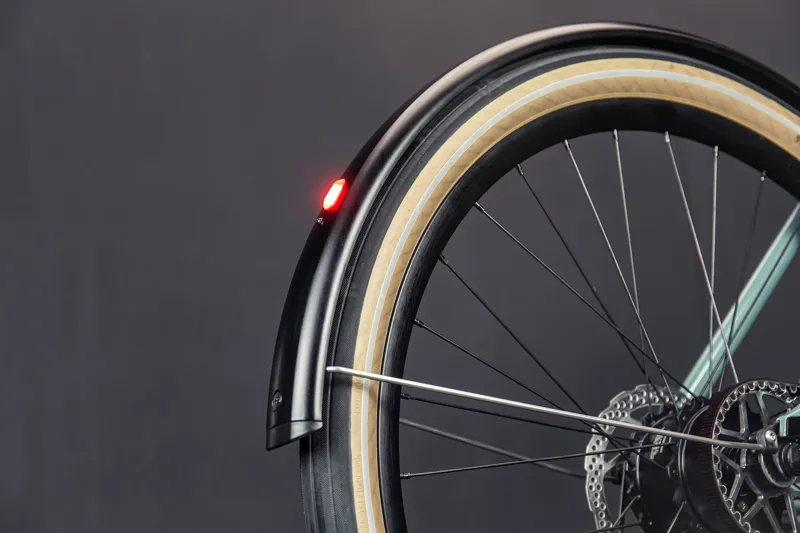

mudguardsCurana – Apollo (extrusion profile mudguards)
pannier rackSchindelhauer – aluminium, frame mounted, with VarioStrap system, ready for Ortlieb Rack-Lock

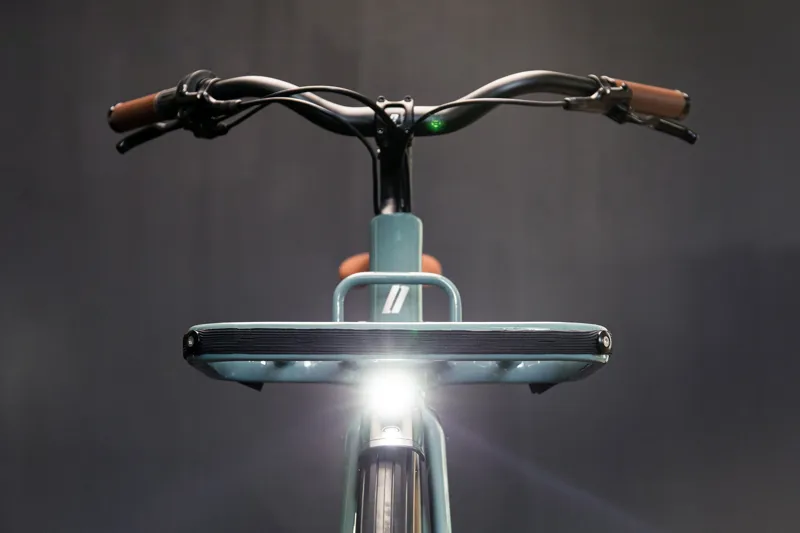

lightingLightSKIN Ultra-Mini-Light U2E front and ILU jr. rear
additional featureskickstand
mounting of bottle cage or lock possible, frame mounting possible
We reserve the right to make minor changes to features without prior notice.
Sizing Information

GEOMETRY

which frame size is right?

The frame sizes listed are only a guide. Finding the right sized frame for you depends on things like your height, personal preferences and riding style. We always recommend taking a test ride atone of our dealers.

size recommendation

frame sizeS
45
M
50
body height158-172172-186
inseam length73-8080-95

frame size45
S
50
M
A size c-t (mm)450500
B top tube horiz. (mm)600620
C head tube (mm)180200
D chain stay (m)449449
E head tube angle (°)72,572,5
F seat tube angle (°)7373
G wheelbase (mm)10771097
H standover height (mm)808836
I Reach419437
J Stack605624
headset1 1/8 - 1,51 1/8 - 1,5
seatpost size (mm)31,631,6
